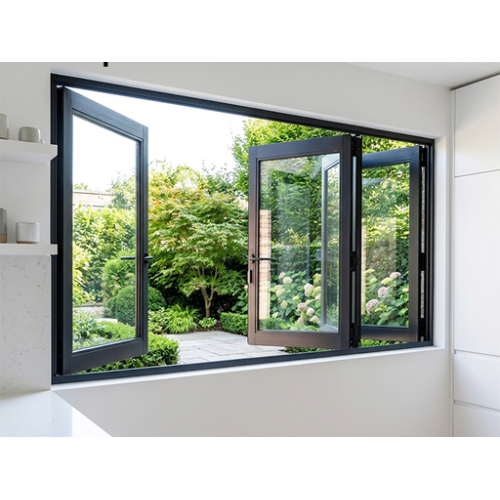

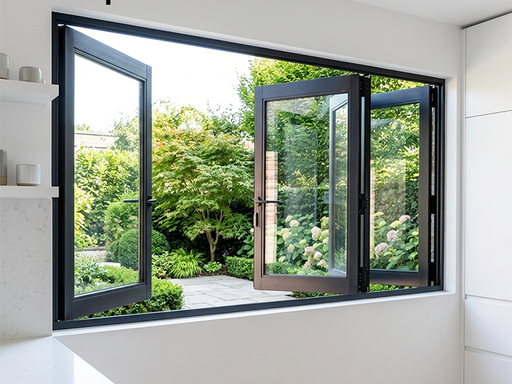

Often called bi-fold or accordion windows, these are multi-panel systems hinged together that concertina to one or both sides, opening up to 90% of a wall. Unlike sliders, they virtually erase the barrier between indoors and out.
Core components of a quality system:
· Top-hung or bottom-rolling: Top-hung keeps floors clear; bottom-rolling is often more economical.
· Multi-point locks: Ensure airtightness and security.
· Thermal break: A polyamide strip between inner and outer aluminum profiles that interrupts heat flow.
· Marine-grade stainless steel hardware: Resists rust in coastal or humid settings.
Frames are typically extruded from 6063-T5 or 6060-T6 alloys, giving high strength with slim profiles that support large glass panes.
Why Aluminum? The Material Edge
Strength-to-slimness: Aluminum allows thinner frames than uPVC while carrying triple-glazed units over 50 kg. Timber can be slim but demands upkeep; uPVC needs bulk for strength.
Thermal performance: Old aluminum windows conducted heat freely. Modern thermally broken systems with polyamide barriers and EPDM seals now reach U-values as low as 1.2 W/m²K or better, meeting Passive House criteria. Look for NFRC, AAMA, or EN 12207 certifications.
Weather resistance: Powder-coated or anodized aluminum withstands 30+ years of UV, rain, and salt without warping or brittleness. For oceanfront projects, specify marine-grade coating and 316 stainless hardware.
Sustainability: Aluminum is infinitely recyclable without property loss. High recycled content plus thermal breaks can contribute to LEED or BREEAM credits.
Design Configurations That Work
Inward vs. outward opening: Outward folding saves interior floor space — ideal for patios and counters — but check local codes for projections. Inward folding suits high-rises or restricted walkways but requires furniture clearance.
Panel count and traffic doors: A 3–4 panel bank handles pass-through counters; 6–10 panels span full walls. For daily access without folding everything, integrate a swing traffic door.
Corner openings: A post-free corner creates a dramatic 90-degree opening. This demands precision engineering for weather sealing; work only with manufacturers who prove corner performance with test data.
Sill choices: A recessed flush sill merges indoors and out but needs advanced drainage and often an overhang. A raised sill gives better weather protection but creates a step. Match sill design to your climate honestly.
Performance Ratings You Must Check
A showroom appearance means little without verified numbers.
· Air infiltration (AL): Aim for ≤0.3 cfm/ft² at 1.57 psf (AAMA AW class) to avoid drafts.
· Water resistance: 300 Pa or higher indicates reliable storm performance; look for pressure-equalized drainage.
· Structural load: In hurricane zones, require impact testing (missile D or E per ASTM E1996) and minimal deflection.
Always request third-party reports from NAMI, AAMA, or Intertek.
Is It Right for You? Quick Decision Matrix
Scenario Recommendation
Opening an entire wall to garden/patio ✅ Ideal
Oceanfront with salt spray ✅ Aluminum with marine coating; avoid untreated timber/uPVC
Tight budget, small opening Consider a high-quality sliding or French door instead
Passive House/net-zero project ✅ Triple-glazed, thermally broken profiles
Upper-floor installation Check weight limits; top-hung eases threshold
Historic district approvals Custom aluminum can mimic steel/timber profiles
Trends Shaping the Next Generation
Sightlines are shrinking to 20 mm interlock profiles using reinforced polymers. Motorized systems now integrate with smart homes — rain sensors close windows automatically, geofencing responds when you leave. Electrochromic and thermochromic glass can eliminate blinds. On the horizon: aerogel thermal breaks and vacuum-insulated glass, enabling certified Passive House folding systems without reducing opening area.
The Bottom Line
Aluminum folding windows dissolve the line between inside and out — adding light, air, and spatial freedom. But they demand proper engineering: thermal breaks, tested ratings, corrosion-resistant hardware, and expert installation. Choose a system that’s designed, not just assembled, and it will reward you for decades.
Ready to find your ideal configuration? Browse our fully customizable aluminum folding window collection or contact our design team for a free consultation.
