Paneled Sliding Doors: Select the Pattern and Construction

Understand what the word panel describes

In one quotation, panel may mean a recessed section within a timber leaf. In another, it may mean a whole moving glass leaf. Clarify the terminology before comparing prices or drawings.

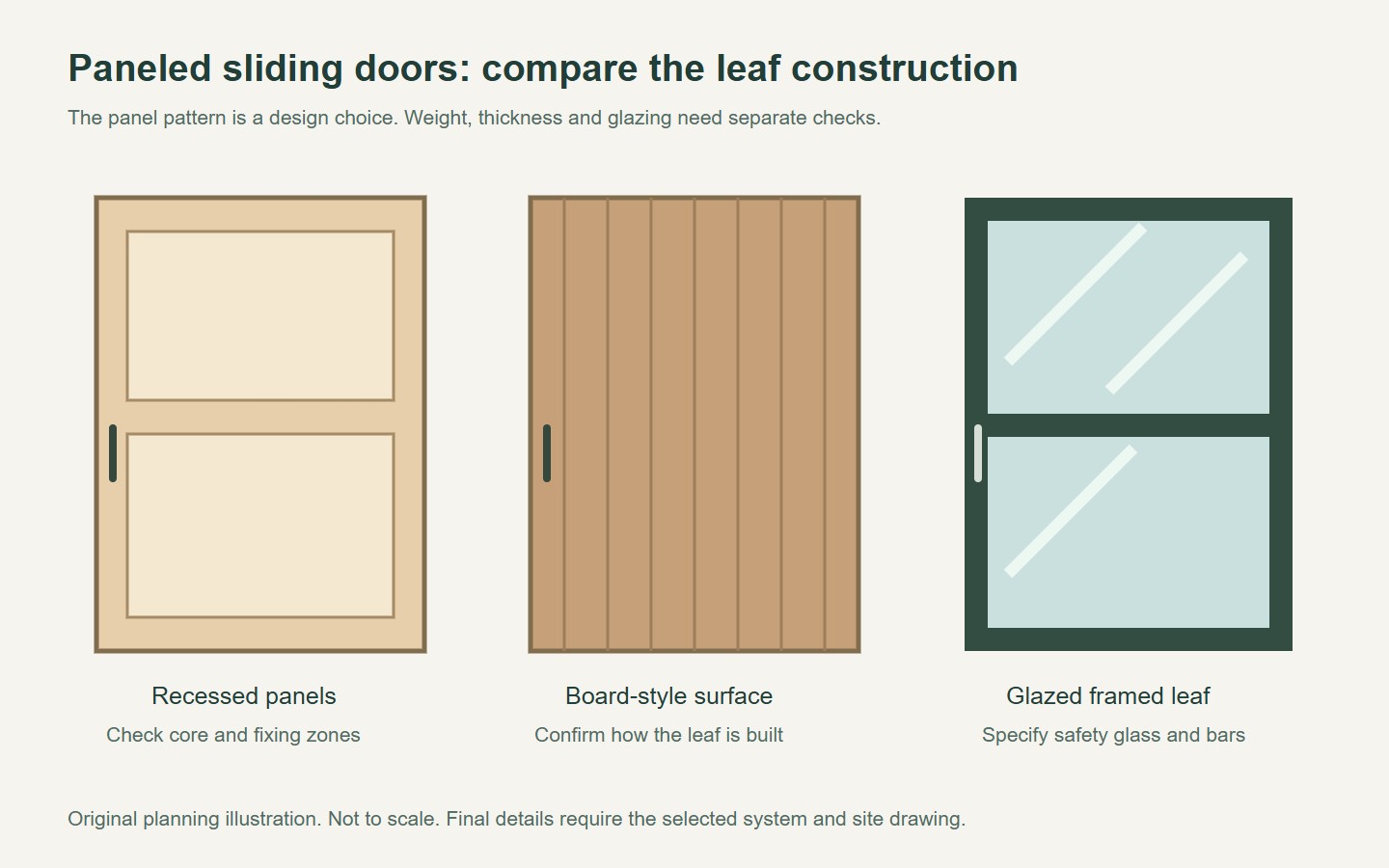

Ask for a construction description alongside the elevation. A two-panel shaker-style face, for example, can be made in different ways. The visible rectangles alone do not tell you whether the leaf uses traditional joinery, an engineered core or applied mouldings.

Design paneled sliding doors as part of the elevation

Draw adjoining doors, windows, cupboards and major horizontal lines at the same scale. A panel division that looks balanced on one door may become awkward beside a nearby window transom or a run of cabinetry.

Also compare the open position. When sliding leaves overlap, their visible subdivisions can combine into a different pattern. Decide whether that effect matters in the room's normal use, particularly where some leaves remain parked for most of the day.

An illustrative pair of equal 800 mm leaves produces a different visual rhythm from one 1,600 mm leaf, even before frame and overlap details are considered. These figures describe a design comparison only; they do not establish an available size or a clear opening.

Use a simple full elevation to compare alternatives before commissioning detailed joinery. Keep decorative decisions separate from the frame and leaf dimensions required by the operating system.

Match the leaf to the operating hardware

Confirm finished thickness and total weight, including glazing, applied panels and handles. Then identify the compatible track, hangers or rollers, guides and stops. A door that resembles another model should not inherit that model's hardware rating.

The Johnson Hardware wall-mount product range specifies different thickness and weight conditions for different systems. That makes it important to name the exact hardware in the order rather than simply describing it as heavy duty.

If the surface pattern includes projecting mouldings, show their depth. They can affect the offset from the wall, the gap between overlapping leaves and the space needed inside a pocket. The most prominent point on the finished face is relevant to clearance, not only the nominal core thickness.

Plan handle placement around both the panel pattern and usable grip. A handle should not be moved to an inconvenient position simply to centre it in a decorative rectangle. Test its position when the leaf is fully open.

Treat glazed subdivisions as a separate specification

A framed glass leaf may use bars that form part of its construction, decorative applied pieces or other arrangements. Ask what the drawing represents. This affects how the design looks from the reverse side and how the glass can be cleaned.

Glazing appearance does not establish safety classification. The CPSC architectural glazing guidance identifies doors within its U.S. product scope. Confirm the requirements for the project and request documentation matching the supplied glass.

Resolve glass preparation before manufacture. The National Glass Association engineering manual advises completing fabrication before heat treatment. Do not plan to add a hole to finished tempered glass when a handle or decorative fitting changes.

For actual catalogue references, the Forge interior PT Door example shows a framed glazed appearance, while the sliding door range provides other configurations to discuss. Confirm the opening movement and materials of the selected product rather than inferring them from the decorative pattern.

Approve a sample and the finished edges

Review the finish in the room's light, including the reverse face and edges. A sliding leaf may spend much of its time parked where its edge is prominent. A finish that looks convincing only from the front may not deliver the intended result.

Ask for the care instructions before choosing a detailed profile. Recesses, applied strips and glazing bars create different cleaning tasks. Confirm how the finish responds to the expected indoor environment and use the supplier's recommended methods.

1. Define whether panel means a face detail or a complete leaf.
2. Compare the closed and open elevations with adjacent joinery.
3. Confirm construction, weight, thickness and projecting details.
4. Match the hardware and handle positions to the finished leaf.
5. Approve the sample, reverse face, exposed edges and care instructions.

Send Forge your elevation and preferred glazed appearance when evaluating a framed option. Paneled sliding doors are most convincing when the visual design and the operating details support one another.

Questions buyers ask

Are paneled sliding doors always made from solid wood?

No. A similar appearance can be produced with different cores, applied details or framed glazing. Ask for the actual construction and finished weight before choosing the hardware or making assumptions about performance.

Can I add mouldings to an existing sliding door?

Have the proposed change reviewed first. Added mouldings affect thickness, weight and clearance, especially where leaves overlap or enter a pocket. The existing hardware and fixing zones may not suit the modified leaf.

Does a two-panel design mean there are two moving doors?

Not necessarily. It may describe two recessed sections within one leaf. Specify both the number of moving leaves and the pattern within each leaf so the quotation and drawing describe the same design.
