Aluminium Casement Windows: An Australian Selection Guide

Aluminium casement windows are side-hinged windows that open outward and use an aluminium frame. They can be a practical choice for Australian homes when the complete window system—not the frame material alone—is matched to the site, climate and opening. The important checks are the whole-window U-value and solar heat gain coefficient (SHGC), glazing, seals, hardware, wind and water ratings, finish, installation details and required safety provisions. Standard and thermally broken aluminium frames can perform very differently, so compare documented values for the exact size and configuration you intend to order.

This guide explains how to assess those details without assuming that one Aluminium Casement Window suits every project. For general operation and layout guidance, see our casement window guide for Australian homes.

Key Takeaways

• Judge the whole window—frame, glass, spacer, seals and hardware—not aluminium in isolation.
• Compare whole-window U-value and SHGC for the exact configuration; lower is not automatically better for every orientation or climate.
• Confirm project-specific structural, water, air leakage, safety glazing and opening-control requirements before ordering.
• Use a suitable finish and maintenance plan for the exposure, especially near the coast or other corrosive environments.
• Installation and perimeter sealing can determine whether a well-specified window performs as intended.

Why Aluminium Casement Windows Suit Many Designs

A casement sash closes against compression seals around its perimeter. With suitable hardware and correct adjustment, that closing action can support controlled weather sealing. The outward-opening sash also directs breezes into a room and allows a wide clear opening, subject to size, hardware and safety constraints.

Aluminium is frequently selected for slim profiles, design flexibility and a durable architectural finish. It can support contemporary openings without the visual bulk of some frame types. Those advantages do not establish energy, acoustic or weather performance by themselves: performance belongs to the tested or assessed assembly. Browse Forge’s Aluminium Window range and casement window options as starting points, then confirm the precise system for your project.

Standard vs Thermally Broken Aluminium Frames

Aluminium conducts heat readily. In a standard frame, the internal and external aluminium sections provide a relatively direct heat path. A thermally broken frame separates those sections with a less-conductive barrier. This can reduce frame heat transfer, but the result still depends on the full system, including the glass, edge spacer, sash geometry and frame-to-glass ratio.

The Australian Government’s YourHome glazing guidance explains that U-value describes heat conduction through the whole window, while SHGC describes solar heat entering through it. A lower U-value means better resistance to conductive heat flow. The appropriate SHGC depends on factors such as orientation, shading, climate and the home’s heating or cooling needs.

Six Specifications to Compare

1. Whole-Window U-Value and SHGC

Ask whether published figures cover the complete window rather than centre-of-glass performance. The frame can be a meaningful part of a smaller casement window, so two windows with similar glass may have different whole-window results. The Window Energy Rating Scheme (WERS), managed by the Australian Glass and Window Association, is designed to help compare the energy performance of fenestration products. Do not claim or rely on a WERS result unless it applies to the named product and supplier.

2. Glass Build-Up

Single glazing, insulated glass units, low-emissivity coatings, tints and laminated or toughened glass address different needs. Glass selection should respond to thermal design, daylight, solar exposure, safety, noise and budget together. Double glazing may improve resistance to heat transfer, but it does not make frame conduction, solar control, seals or installation irrelevant.

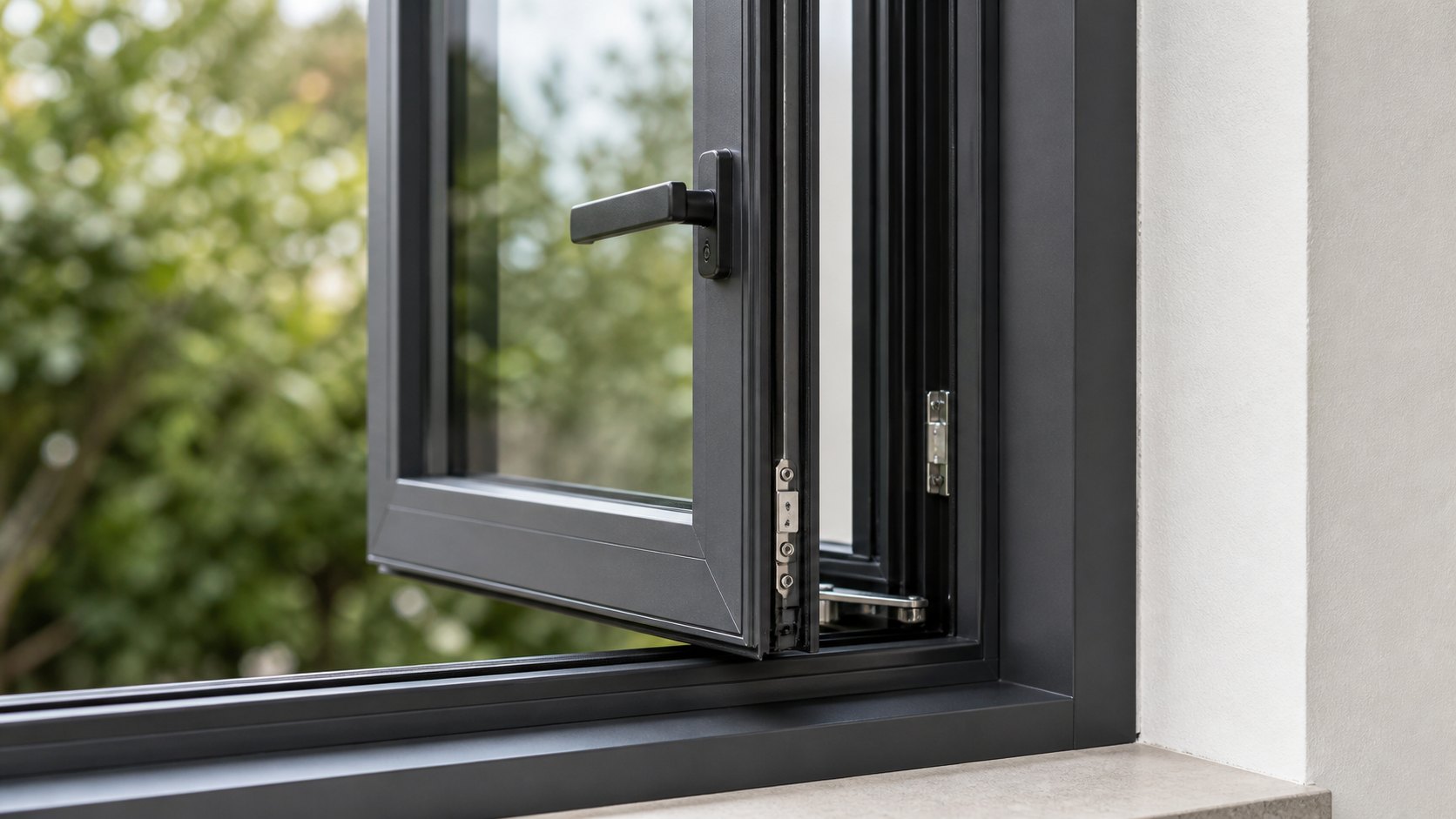

3. Seals, Hardware and Air Leakage

Inspect the number and continuity of perimeter seals, corner joints, hinge capacity, locking points and adjustment access. A sash should close evenly onto its seals without excessive operating force. NCC 2022 Housing Provisions Part 13.4 on building sealing includes provisions for sealing openable windows serving specified spaces and notes an AS 2047 air-infiltration pathway. Project teams must confirm the edition, state or territory variations and compliance pathway currently applicable to their job.

4. Wind and Water Performance

Ratings must suit the building location, height, terrain, shielding, corner conditions and exposure to wind-driven rain. The AGWA compliance guidance explains that AS 2047 testing addresses deflection, operating force, air infiltration, water penetration resistance and ultimate strength. Ask for documentation that identifies the relevant system and rating; do not transfer evidence from a different size or configuration without technical confirmation.

5. Surface Finish and Exposure

Powder-coated and anodised finishes can provide different appearances and maintenance requirements. The suitable specification depends on the alloy, coating system, colour, location and environmental exposure. Coastal salt, industrial contaminants and sheltered areas that are not naturally rain-washed may require closer attention. Obtain the finish supplier’s written suitability and care guidance for the project location rather than relying on colour alone.

6. Installation and Drainage

Confirm frame support, fixings, flashings, sill drainage, clearances and the perimeter sealant interface before fabrication. Drainage paths must remain open, and the opening must be prepared so water is directed to the exterior. Follow the window supplier’s installation instructions, the approved construction details and the requirements set by the project designer or certifier.

A Practical Selection Process

1. Define the opening. Record dimensions, sash direction, room use, orientation, shading and access for cleaning.
2. Establish site conditions. Confirm wind classification or design pressure, rain exposure, bushfire or coastal conditions, and any fall-prevention or human-impact risks.
3. Set performance targets. Use the project’s energy assessment to nominate acceptable whole-window U-value and SHGC ranges.
4. Compare documented systems. Match the frame, glass, seals and hardware to evidence for the proposed size and configuration.
5. Coordinate installation. Resolve fixing, flashing, waterproofing, drainage and sealant details before the window arrives.
6. Check handover information. Retain labels, certificates, care instructions and project-specific approvals.

Frequently Asked Questions

Are aluminium casement windows energy efficient?

They can be, but the answer depends on the complete assembly. Compare whole-window U-value and SHGC for the specified frame, glazing and size. A thermally broken frame and an appropriate insulated glass unit may improve thermal performance, but the correct combination remains climate- and project-specific.

Is a thermally broken aluminium frame always necessary?

No single frame type is automatically required for every home. The decision should follow the project’s climate, glazing area, orientation, comfort objectives, condensation analysis and energy compliance pathway. Obtain project-level advice where the consequences are material.

Can casement windows use double glazing?

Many casement systems are designed for insulated glass units, but capacity varies. Confirm allowable glass thickness, sash weight, hardware limits, drainage and documented performance for the exact system. Our separate double glazed casement window guide covers this topic in more detail.

What should I ask for before ordering?

Request drawings, glass make-up, whole-window energy values where relevant, wind and water ratings, air-infiltration information, finish specification, hardware schedule, installation instructions and applicable compliance documentation. Check that every document refers to the configuration being purchased.

Are aluminium casement windows suitable near the coast?

They may be suitable when the frame finish, hardware, fixings, sealants and maintenance regime are specified for the actual exposure. Distance from the sea is not the only variable; prevailing winds, salt deposition and whether surfaces are naturally washed also matter. Seek written project-specific recommendations.

Conclusion

The best aluminium casement window is not selected by appearance or frame material alone. Start with the opening and site, compare whole-window evidence, coordinate the glazing and hardware, and verify how the assembly will be installed and maintained. Regulations, standards and adoption arrangements can change, and the linked NCC 2022 material is a reference point rather than project certification. Confirm the currently adopted requirements with the relevant designer, energy assessor, supplier and building certifier.

For a project-level discussion, contact Forge with your opening sizes, location, drawings and performance brief. Availability, compliance evidence, finishes and configurations should be verified for each project before specification or purchase.
