Casement Window Latch: An Australian Selection Guide

A casement window latch is the hardware that pulls an outward-opening sash against its frame and holds it closed. The right latch must match the window system, sash size, keeper position and intended use. It is suitable when the original hardware can be identified and the frame, hinges and seals are sound; it is not a safe “universal” repair when the sash is misaligned, corroded or subject to project-specific fall-prevention requirements. Before ordering, compare the fixing pattern, spindle or linkage, handedness, handle clearance, locking points and finish—and confirm the selected hardware does not obstruct emergency access or required ventilation.

Key Takeaways

• A latch, an operator and an opening restrictor perform different jobs; do not substitute one for another.
• Match the window system and fixing geometry before choosing colour or handle style.
• A hard-to-close latch can indicate sash, hinge, seal or keeper misalignment rather than a weak handle.
• For elevated or child-accessible windows, confirm current NCC and state or territory requirements before changing hardware.
• Ask for project-level compatibility and performance evidence instead of assuming a similar-looking part will work.

What a Casement Window Latch Actually Does

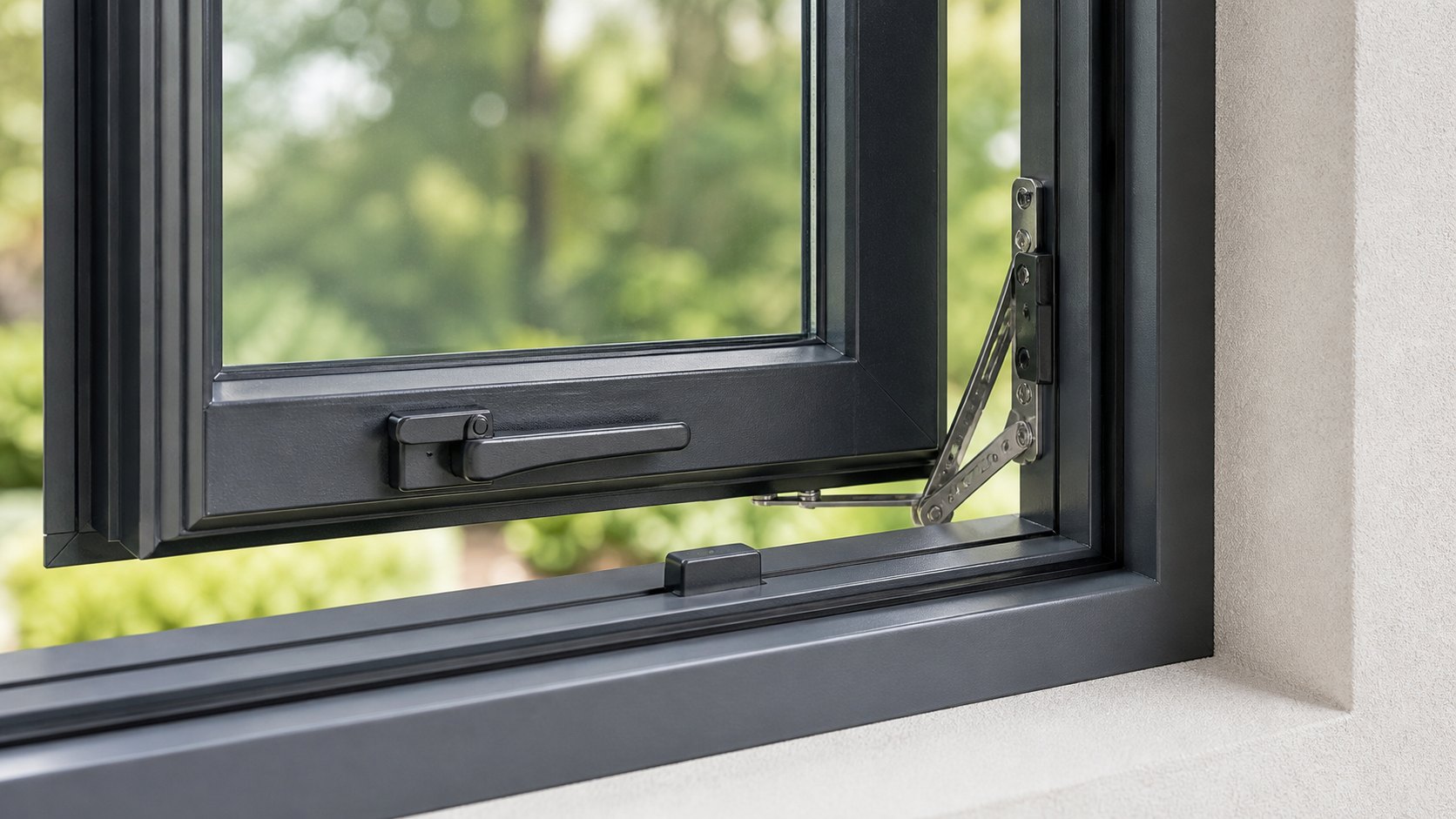

On a simple system, turning the handle moves a tongue or cam into a keeper on the frame. Multipoint systems drive several locking points through a concealed linkage. In both cases, correct engagement helps the sash compress its weather seals. The latch is not normally the component that opens the sash; a winder, stay or friction hinge controls movement.

This distinction matters when diagnosing a fault. A loose handle may indicate worn internal parts, but excessive closing force can result from a dropped sash, swollen or displaced seals, loose hinges, a shifted keeper or debris in the frame. Replacing only the visible handle may leave the underlying problem unresolved. For broader operation guidance, read Forge’s casement window guide.

Latch, Operator or Restrictor?

A keyed latch may add access control, but it is not automatically a compliant opening-restriction solution. Likewise, a restrictor is not proof of security, weather performance or compliance on its own. The complete window, installation and building context must be assessed.

Seven Checks Before Choosing a Replacement

1. Identify the exact window system

Record the frame material, profile, sash arrangement and any manufacturer or system information that remains available. Measure the visible hardware, screw centres, backset, keeper position and handle projection. Photograph the window open and closed, including the edge where locking components engage. Browse Forge’s window and door range for system context, but verify every replacement against the actual installed profile.

2. Check handedness and handle clearance

Some latches are reversible; others are made for a particular opening direction. Confirm whether the hinges are on the left or right when viewed from the nominated side, and state that viewpoint when enquiring. Check that the handle clears the reveal, blinds, screens and furnishings through its full movement.

3. Inspect sash alignment before blaming the latch

With the sash supported, look for rubbing, uneven gaps, loose hinges, distorted profiles, damaged corner joints and seals that have rolled out of their channels. Do not force the handle to overcome misalignment. That can damage the linkage, keeper or fasteners and may make the window harder to release.

4. Compare locking action and keeper geometry

A single-point cam, wedge latch and multipoint espagnolette are not interchangeable categories. The moving component must enter the correct keeper at the correct depth while applying even seal compression. Confirm the number and position of locking points, travel direction and compatibility with the sash cavity.

5. Consider weather sealing and operating force

Closing should bring the sash evenly onto continuous seals without requiring excessive force. Hardware adjustment is not a substitute for damaged gaskets or a distorted sash. The Australian Glass and Window Association’s compliance guidance explains that AS 2047 verification covers operating force, air infiltration, water penetration resistance, deflection and ultimate strength. Evidence must relate to the complete window system; replacing hardware outside the assessed configuration may require technical confirmation.

6. Verify fall-prevention and child-safety needs

Some openable windows require protection based on building class, room, sill or opening height and the distance to the surface below. ABCB’s Openable Windows Advisory Note explains the purpose of opening-restriction provisions and child-resistant release mechanisms. Current requirements and state variations must be checked for the specific project; do not assume a key-locking latch alone satisfies them.

NSW also publishes window safety guidance describing high-risk windows and safety-device concepts. This is state-specific information, not a substitute for advice from the relevant building practitioner or authority in another jurisdiction.

7. Match materials, finish and exposure

Ask about hardware substrate, coating, fastener compatibility and suitability for the site. Coastal salt, condensation and cleaning chemicals can accelerate deterioration. A matching colour does not establish corrosion suitability. Obtain written maintenance guidance and avoid mixing components that can cause adverse material interactions.

A Fast Diagnostic Checklist

1. Open the sash and check whether it moves smoothly without the latch engaged.
2. Inspect hinges, stays, corners, seals and drainage paths for movement or damage.
3. Close the sash gently and watch whether the latch and keeper align.
4. Check for missing screws, cracked castings, worn cams or damaged linkage.
5. Record measurements and clear photographs; do not enlarge holes or grind keepers before compatibility is confirmed.
6. If the window is elevated, part of a strata property or in a child-accessible room, pause and obtain compliance advice.

Frequently Asked Questions

Are casement window latches universal?

No. Similar-looking latches can differ in fixing centres, backset, spindle, handedness, keeper geometry, linkage and frame compatibility. Use the window system and measured hardware details to identify a suitable component.

Why is my casement latch hard to close?

Possible causes include sash drop, loose hinges, a shifted keeper, damaged seals, frame distortion, corrosion or worn internal parts. Do not simply apply more force. Check alignment and the complete hardware path first.

Does a keyed latch make a window child-safe?

Not automatically. A fall-prevention solution may need to limit the opening and meet other project-specific conditions. Confirm the currently adopted NCC provisions, state rules and the building context with a qualified practitioner.

Can I replace only the handle?

Sometimes, if the handle is a separately replaceable component and the internal mechanism, keeper, fasteners and sash alignment are sound. If the drive or linkage is worn, replacing only the handle may not resolve the fault.

What information should I send when requesting a latch?

Provide the project location, window material and opening direction, clear photos, screw-centre and backset measurements, sash dimensions, quantity, existing markings, finish, safety or performance requirements and the required timing.

Conclusion

Selecting a casement window latch is a compatibility and system-performance task, not a visual match. Identify the window, diagnose alignment, distinguish locking hardware from operators and restrictors, and verify any safety obligations before work begins. Regulations and referenced standards can change, so obtain project-specific confirmation rather than relying on this general guide as certification.
